Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

19/4/2024

Can I Charge Lifepo4 Battery With Solar Power

                                                                   Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

Absolutely, yes. Solar power is one of the best ways to charge your LiFePO4 battery pack. You can use any kind of charging gear to charge VnicePower battery pack with solar power as long as its voltage is within 58.4V for a 48V LiFePO4 battery pack.

Experts highly recommend using solar panels to charge your LiFePO4 battery pack. The main reason is that the energy in your battery pack does not come from another source; instead, it comes from solar panels.

Good For LiFePO4 Battery

A charge controller is a must­have component if you want to charge your LiFePO4 battery pack with solar power. There are two types of charge controllers based on conversion type. Let’s discuss them in detail.

PWM: Pulse Width Modulation charge controller

PWM charge controller is a switch that connects the solar array to your battery. It flicks On and Off as required to maintain a battery voltage at the absorption voltage.

The controller reduces the solar panel’s voltage and makes it closer to your battery’s. As the battery is about to be fully charged, it lowers the amount of power, and the extra energy is wasted.

MPPT: Maximum Power Point Tracking charge controller

MPPT charge controllers are a kind of smart device. They check solar panels’ output power and compare it with the battery voltage. After that, it can set the best power from the solar panels to match to best charging voltage for the battery to deliver maximum current.

According to “A Comparative Study of MPPT and PWM Solar Charge Controllers and their Integrated System,” MPPT charge controllers can make optimum use of available energy from solar panels and provide at least 20% more current to the battery than a PWM charge controller.

A PWM charge controller is cheaper but less efficient. On the other hand, an MPPT charge controller is expensive but more efficient as well. That’s why the MPPT charge controller is better for charging your LiFePO4 battery pack with solar power.

                                                Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

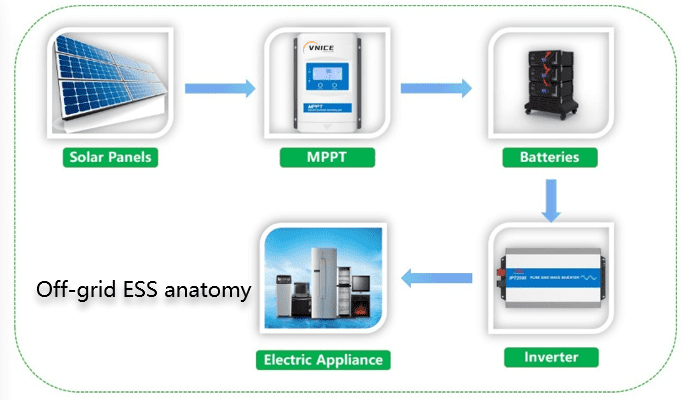

How to charge LiFePO4 with Solar power

You can charge your LiFePO4 battery pack with a standard commercial solar power module. In this case, you can use any charge type as long as it’s compatible with your battery pack.

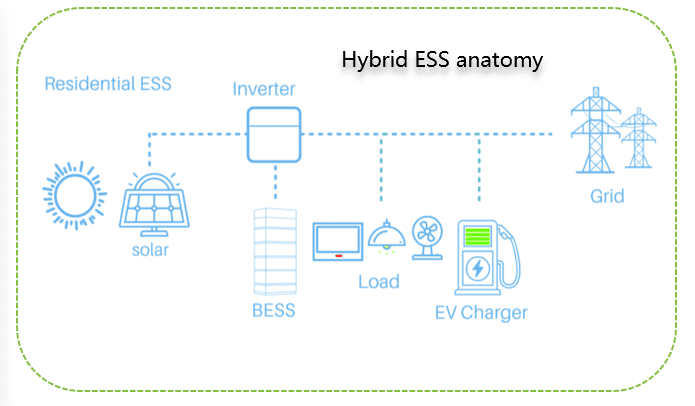

Also, there are two ways you can charge LiFePO4 batteries. Series charge and parallel charge.

                                               Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

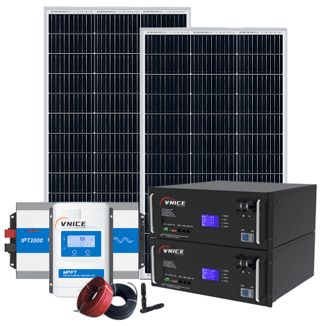

Components Needed For The Set­Up

Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

Since charging with solar panels is not similar to other sources, you will need all the necessary equipment for a standard commercial solar panel setup.

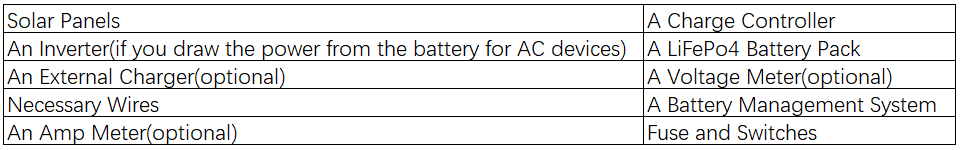

You will require the following components for charging your LiFePO4 battery

pack  with solar panels.

Required components for setting up a solar charging station for LiFePO4 battery back.

A Step­By­Step Process Of Charging LiFePO4 Battery Pack With Solar Power

Generally, a LiFePO4 battery pack requires 2 stages for charging and does not need any float charging. But in the case of solar charging, you should allow float charging since the inverter will draw some load.

Here’s a step­by­step process to charge your LiFePO4 battery pack with solar power.

Step 1: Install Your Solar Panel

In the first step, you have to install your solar panel. Make sure all your solar panels are installed and working correctly. You will have to connect your solar panel with an MPPT or PWM charge controller. Now your solar panel is ready to connect with your battery.

Step 2: Make a Connection To Your Battery

Now, it’s time to connect your solar energy with your battery. There are two ways to do that. If you want to charge temporarily, you can use any charger to charge your LiFePO4 battery. For example, a lead­acid battery charger, external power charger, or a smart charger.

It’s just the charger’s specification has to be in line with your battery’s. For starters, the charger’s voltage cannot exceed 58.4V for a 48V LiFePO4 battery pack.

You must create a permanent connection if you want to use your LiFePO4 battery pack as a permanent battery bank for your solar installation.

For that, if you have an integrated BMS with your LiFePO4 battery pack, you can simply use a single pole and single throw toggle switch with a 20 amp current rating [amp rate needs to be correctly calculated based on your setup] to provide isolation for maintenance.

To create a strong and low resistance connection, tighten the screw well in the positive and negative battery poles. You can also solder them for an even tighter connection.

Step 3: Meter Your Battery Pack

You have to install meters on your battery pack to measure the amp per hour capacity of the battery pack. Using low­cost amp meters will be just fine. You will get 3 amps per meter.

If the amp hour capacity of your battery pack drops below 60% of the actual value, then you have to replace it. This way, you can monitor the current in your battery pack using amp meters.

Step 4: Create A Plug N Play System To Deliver Power [optional]

In this step, you have to create a system to deliver power from your battery pack [using an inverter]. You should use a plug n play system. It is convenient and fast.

Remember that the DC rating is higher than AC for cables and connectors. You will have to use your cables and connectors following that.

Step 5: Run A Thermal Test [optional]

In this stage, you can do thermal imaging of your connection to ensure everything is okay. You should do it at night while the battery is at maximum load.

See if there is any issue with any point of the connection. You can also check the thermal performance of your LiFePO4 battery pack. Generally, LiFePO4 batteries are thermally strong. Thus, they should be fine.

Step 6: Testing Correct Voltage For Charging [optional]

You can test whether your battery is receiving the right amount of voltage from your solar panels. You will have to use a voltage meter for that.

Various Charge Profiles for LiFePO4 Battery

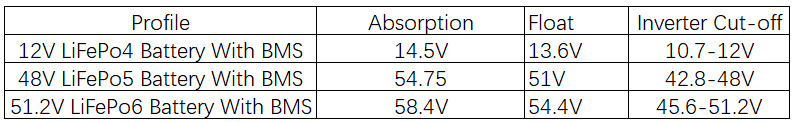

Here’s a table showing various charging profiles of the LiFePO4 battery.

Do you Know How to Use Solar Power To Charge LiFePO4 Batteries ?

Charging voltage profile for LiFePO4 battery

For charging your LiFePO4 battery pack with solar power, the charge controller has to be rightly programmed for your battery pack. Otherwise, you won’t be able to charge your battery. You can check your charge controller manual to be sure if it’s good for LiFePO4 batteries.

Final Thoughts

Charging a LiFePO4 battery with solar power is a pretty good option, provided that you have the correct charge controller, which is programmed for this battery pack. But make sure there’s always a load attached to your battery.
