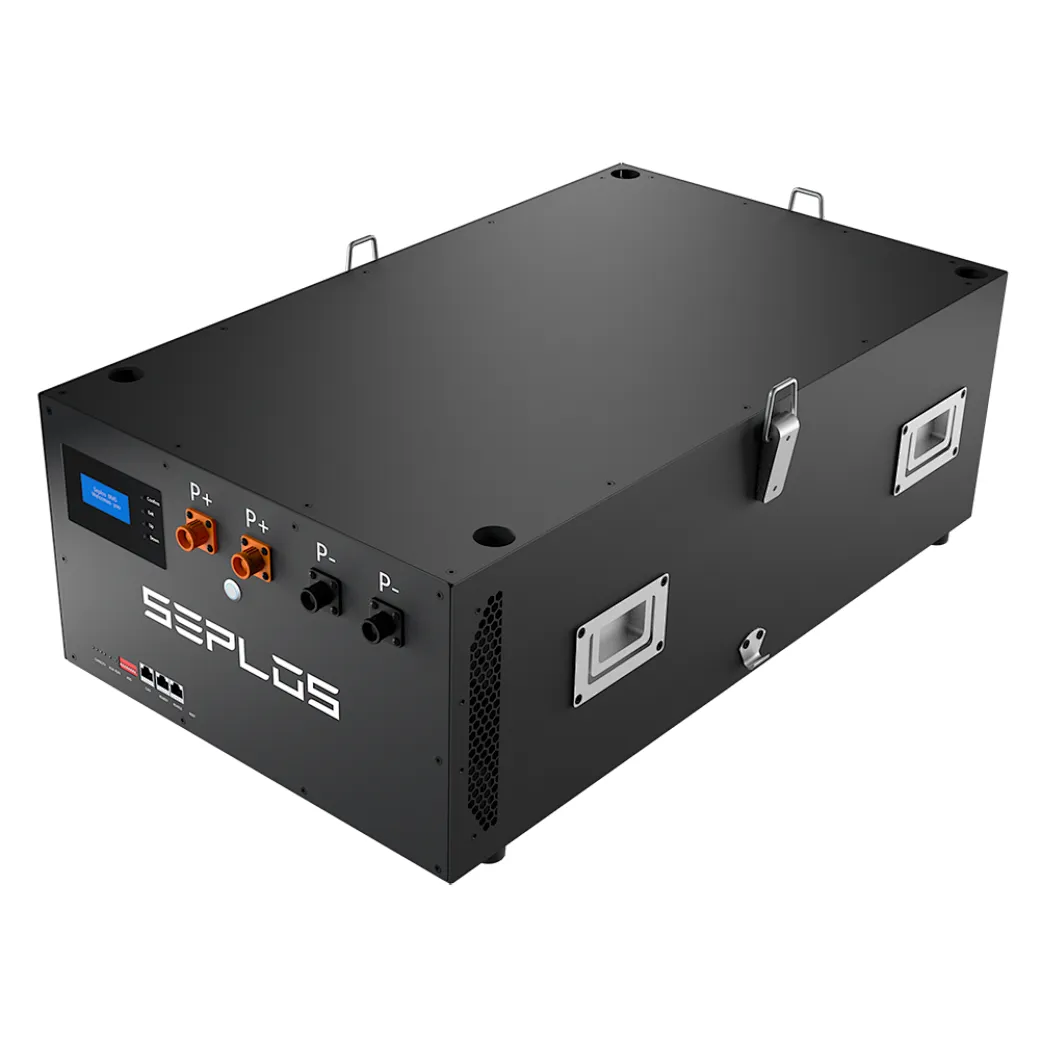

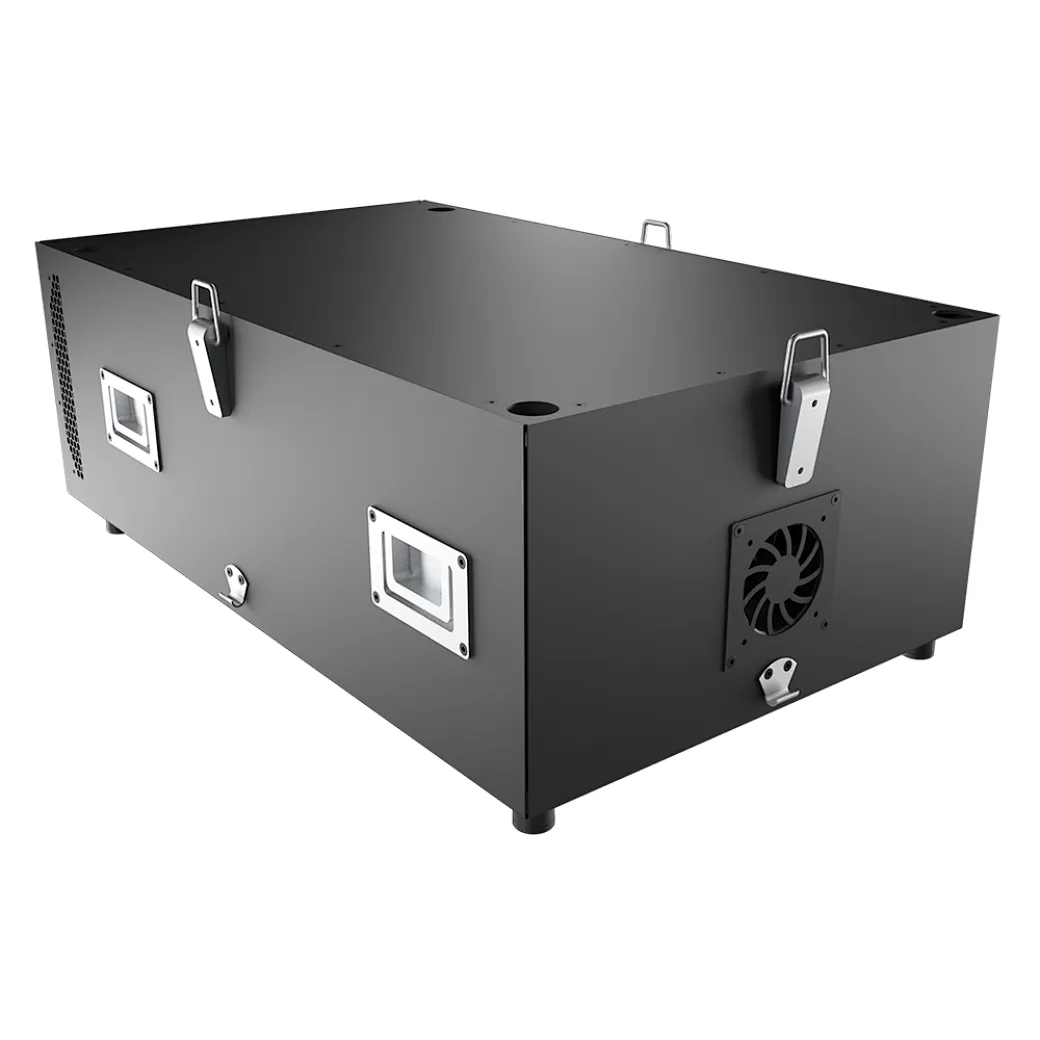

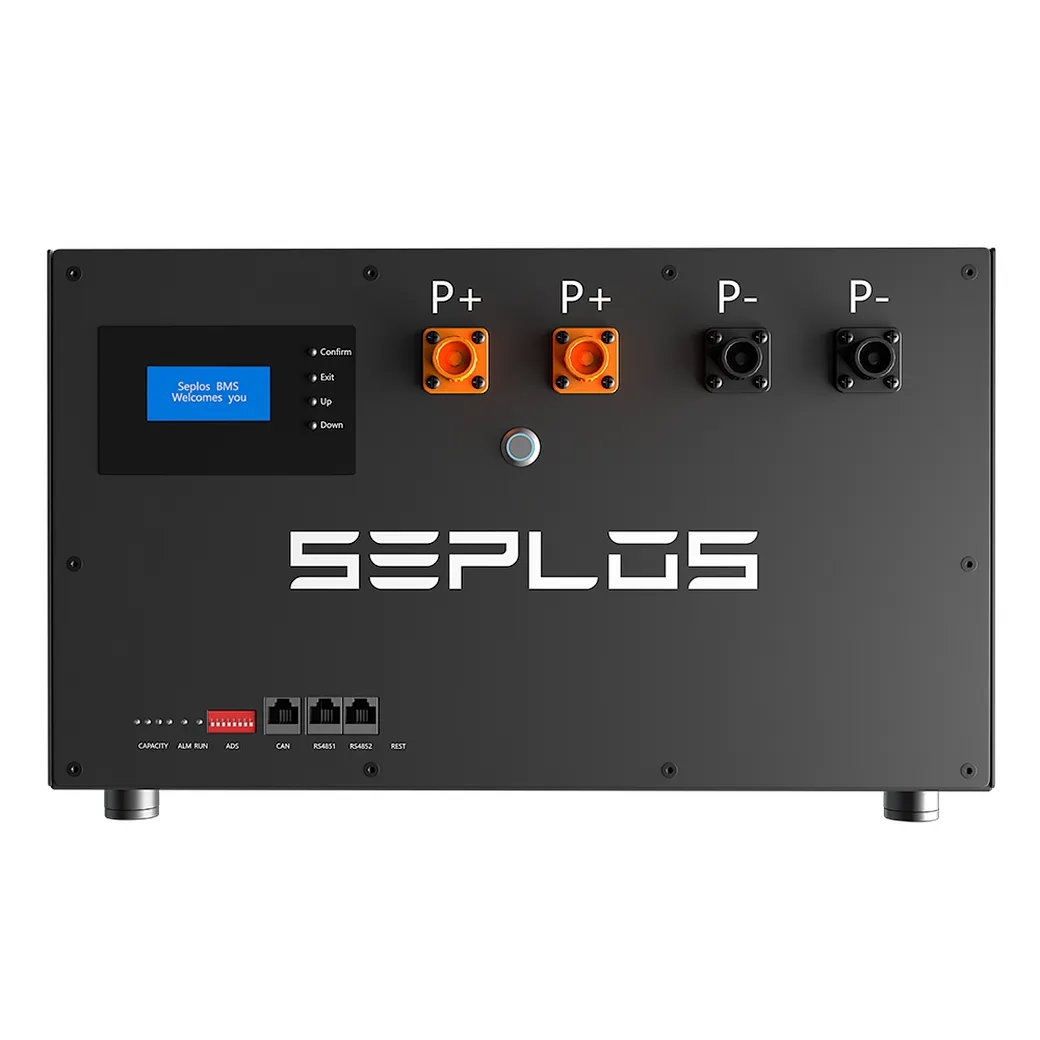

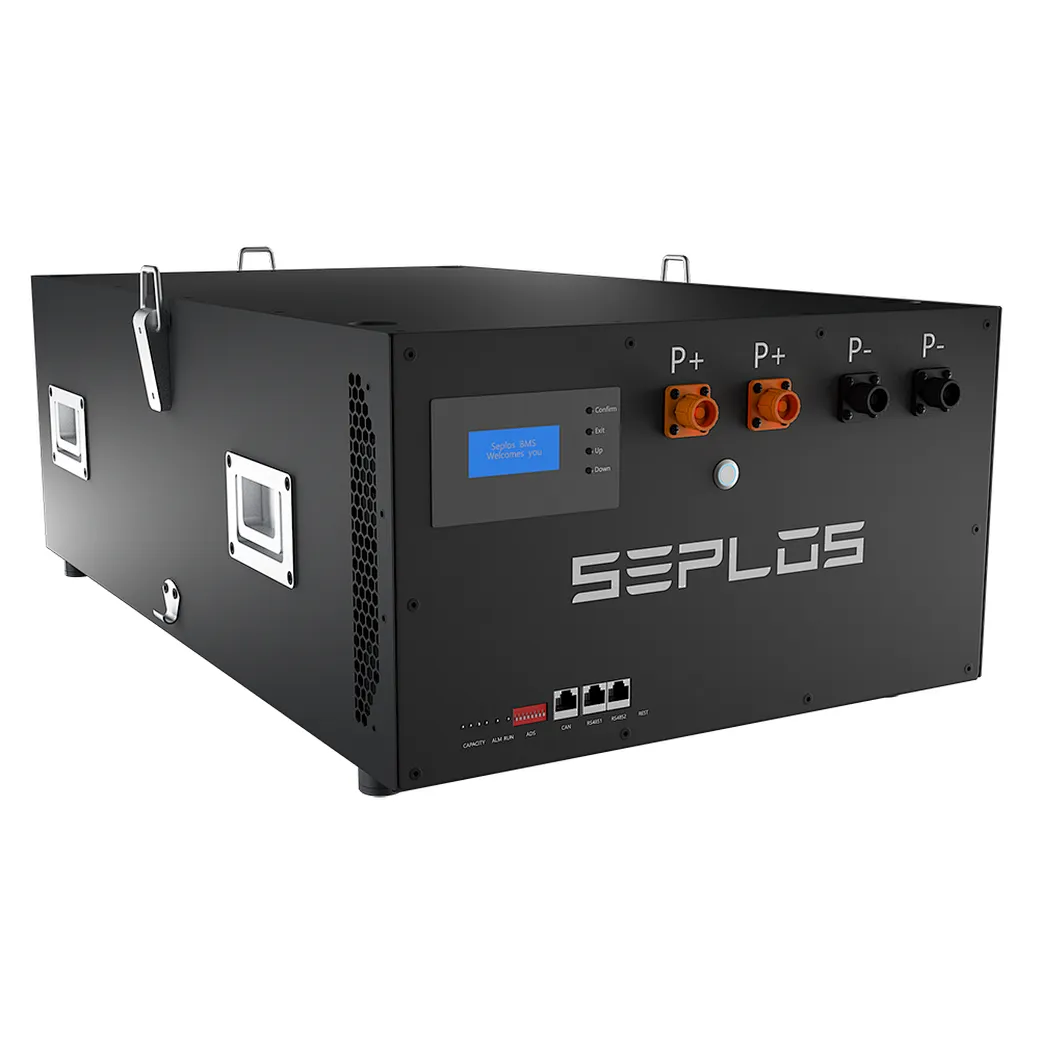

Seplos Mason 280 DIY Kit Box With Cooling Fan Active Balancer For 48V 280Ah Lifepo4 Energy Storage Battery
Minimum Order:1 piece
Supply Ability:3000piece / Month
Country of Origin:China
Stock Time:15Day
Contact Supplier
Compatible Cell Information Details
| Model | Brand | Cell Dimension | Electrode Distance |
| MASON-280A | GF 280AH | 72*174*204 MM | 123 MM |
| LISHEN 280AH | |||
| EVE 280K | |||
| MASON-280C | EVE 280AH | 72*174*200 MM | |
| MASON-280B | EVE 304AH | 72*174*204 MM | 89MM |
Package List
| Item | |
Main Part | |
| 1 | 1*Battery Case(Bottom case, Front Panel, Top Bracket, Front Bracket, Top Cover |
| 2 | 1* 48V 200A 16S VNICE BMS |
| 3 | 1*40V Fan |
| 4 | 1 * 2A 16S Relay Active Balance |
| 5 | 1 * 80V 400A Fuse with Base |
| 6 | 4 * Handle and stand |
| 7 | 2*PCB Board for BMS and Cell Connection |
| 8 | 3*Upper and Lower Latch lock |
| 9 | 1*LCD Screen |
| 10 | 1*LCD screen Sticker |
| 11 | 4*Button Cap |
| 12 | 8* Wires (LCD Screen wire, PCB board A and PCB board connector) |
| 13 | 2 * Battery Terminals (P+ Terminal and P- Terminal) |
| 14 | 1 * ON-OF Switch |
Other Components | |
| 1 | 6*Copper Bus Bar (BMS connection) |
| 2 | 15*Aluminum bus bar(Cell connection) |
| 3 | 10*Epoxy sheet (Between cell and the case) |
| 4 | 26*EVE Tape(Between cells) |
| 5 | 1*PC sheet (Top Cover) |
| 6 | 4 * Terminal dustproof Cap |
| 7 | 3 * Dustproof net |
Screws Details | |
| 1 | 32 * Hex Flange Nut M6 (To Fix The Aluminum Bus Bars) |
| 2 | 12*Phillip Hex M4*8mm(PCB board fix) |
| 3 | 9*Phillip Hex M5*8mm+ Washer +Spring Set(Group cable and top bracket fix) |
| 4 | 7*Phillip Hex M6*25mm+ Washer +Spring Set (Front Panel fix) |
| 5 | 6*Phillip Round M3*8mm+ Washer +Spring Set (BMS fix) |
| 6 | 4 * Phillip Round M3 * 6mm + Washer + Spring Set(LCD Screen fix) |
| 7 | 12 * Phillip Pan M5 * 10mm (Latch fix) |
| 8 | 16 * Hexagon Socket Pan M4 * 10mm (P+/P- Terminals fix) |
| 9 | 42*Hexagon Socket Countersunk M4*10mm (Handle and battery case) |
| 10 | 6 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) |
| 11 | 5* Phillip Hex M8*10mm+ Washer + Spring Set (P+/P- Bus bar fix) |
| 12 | 4 * Hex Flange Nut M4 |
| 13 | 4 * Phillip Round M4 * 8mm + Washer + Spring Set |
| 14 | 4 * Phillip Round M4 * 35mm + Washer + Spring Set |
| 10 | 8* Phillip Round M5*10mm + Washer |
Low Voltage 48V Energy Storage Solution - Compatible inverters
| Brand | Protocol | Communication | Version |
| Pylontech | CAN-BUS-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS- ConnectinBat_ti-en-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorocec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F-CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
