3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

31/8/2024

Every distributor will face the problems of many models and styles,and messy warehouses, lead to difficult to manage them. In addition, each customer’s requirements are different, and some models in stock are unsalable and hard to deal with them. In order to solve these issue, VnicePower launched the FORZA series

3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

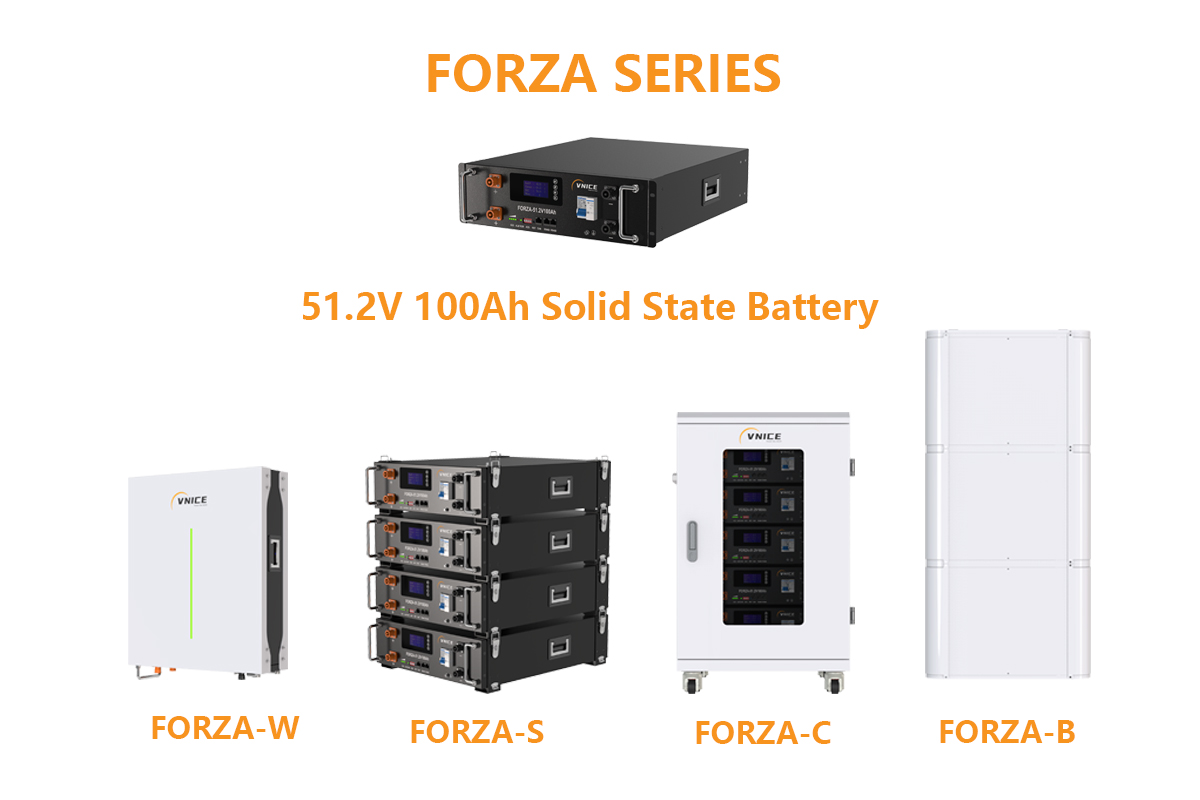

The Forza series consists of a standard 3U module. By adding accessories and changing the connection mode, it can meet the capacity and installation requirements of most end customers for energy storage systems. Forza series products includes Forza-51.2V100Ah (standard model), Forza-W (Wall-Mount), Forza-S ( Stackable ), Forza-C (Cabinet), Forza-B (Brick). See below for details:

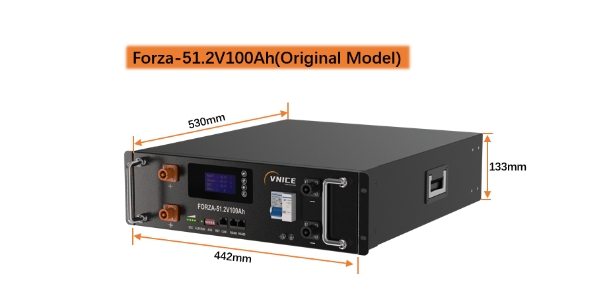

Forza-51.2V100Ah(Original Model)

3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

Forza-51.2V100Ah(original model) uses a standard 3U chassis, plug-in positive and negative plugs, a built-in 200A fuse, a 125A circuit breaker, and a BMS with full protection functions. Support up to 16 modules in parallel, compatible with multiple brands of single-phase and three-phase inverters.

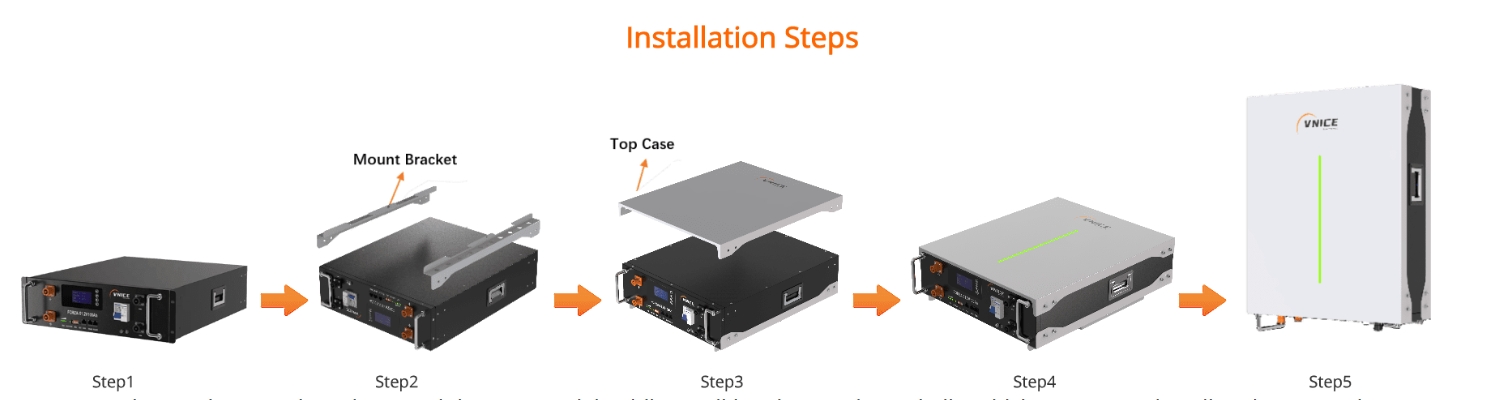

Forza-W(Wall Mount)

3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

Forza-W series products are based on the original model, adding wall brackets and top shells, which are easy to install and compact in appearance. It has become a more popular wall-mounted 5KWh battery pack.

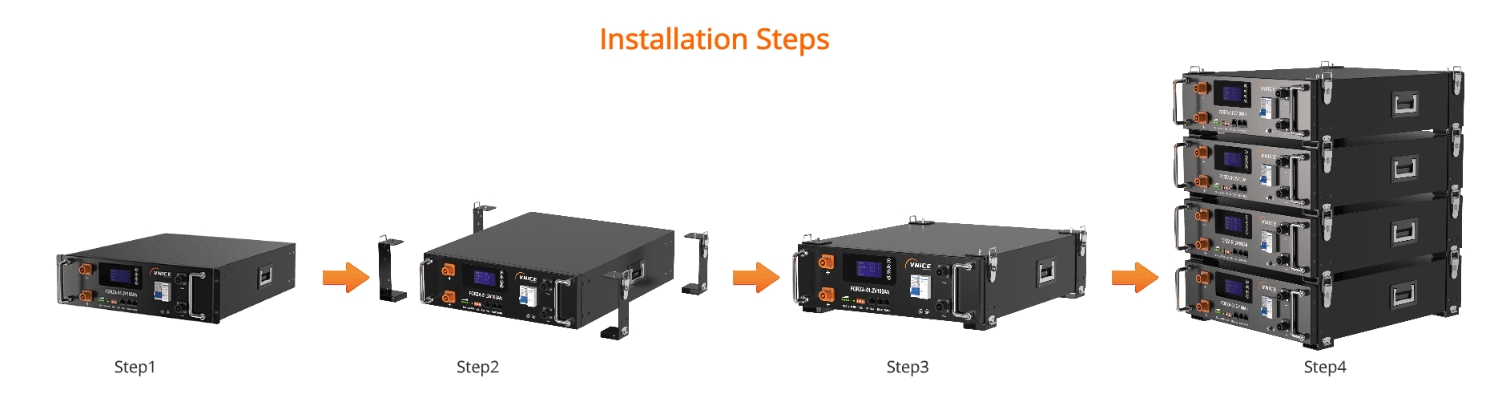

Forza-S (Stackable)

3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?


Forza-S series products are based on the original model, adding mounting brackets, so that the capacity can be increased flexibly, and can support up to 16 modules for stacking. It occupies a small space, is easy to install, and can be operated by one person.

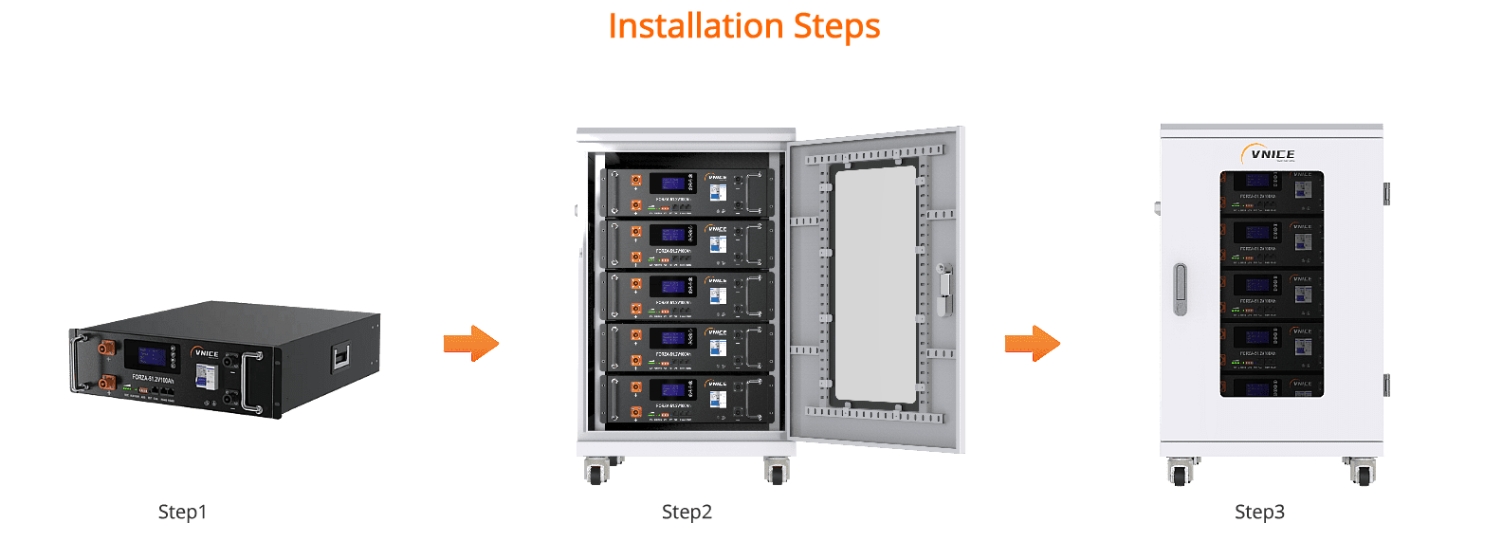

Forza-C(Cabinet)


3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

Forza-C series products are based on the original model, adding IP65 waterproof cabinets to better protect the battery and keep the working environment of the battery clean and tidy. With four moving wheels, it can be placed where you want.

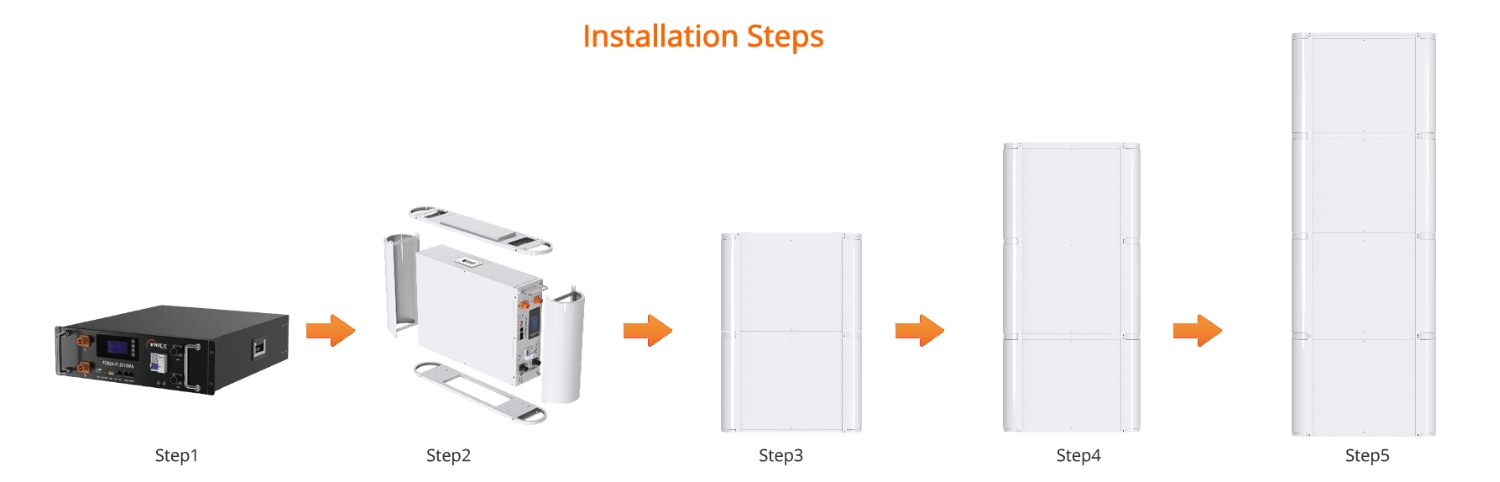

Forza-B(Brick)

3U 100Ah 5KWh Solid State Batteries, How to Becomes 200Ah ESS or More?

Forza-B series products are based on the original model, adding parts to make it more beautiful, each module is independent, ultra-thin thickness, can be installed against the wall, does not occupy space. It can be used together with VnicePower's matching off-grid inverter. Installed on top of the battery to form an off-grid energy storage system.
